Cubigo

Residents in senior living communities need to get things fixed in their rooms, like to attend activities or want to order food for in-room delivery.

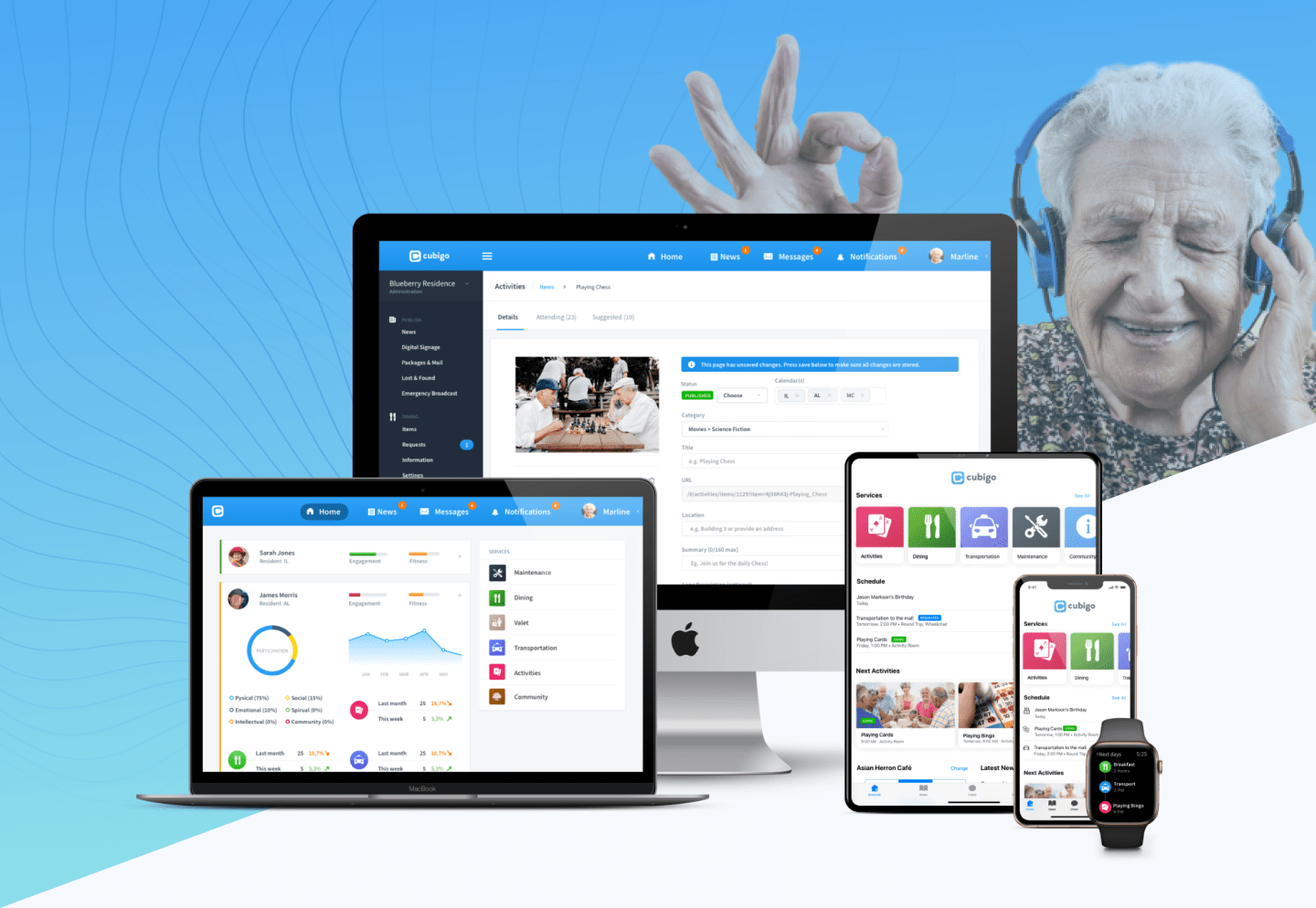

Cubigo is an end-to-end SaaS platform that helps with all these services.

Since getting hired in 2017 to outline the vision & groundwork for this platform, a wide range of functionality has been added. The platform now includes modules like POS dining solutions, activity management tools and a digital signage through Apple TV clients.

In this case study we will focus on the visitor registration kiosk.

User adoption has been a true testament to the ease of use of Cubigo. I continue to hear from residents how happy they are with the new system and thankful they are to have their "Cubi" ahead of the pandemic. In times like this, where most may feel disconnected, Cubigo provides our residents with a sense of connectedness.

Arnaldo Marquez
Technology Director at Southminster

Visitor Registration

Problem

When COVID-19 hit, senior living facilities closed their doors for external visitors. Reopening them without restrictions & proper measures would introduce health risks for their aging residents.

Goal

Implement a safe process to organize staggered visits that comply with government & health regulations. Collect visitor data that allows for contact tracing in case of emergency.

Timeline

Worked for 3 days / week for about 3 months fully remote with the in-house Cubigo product team and 1 external iOS developer. I was responsible for UX research and the UX/UI design.

Result

The solution was rolled-out in 200 communities during the pandemic and helped keep residents safe when communities reopened for visitors. The module also drove sales for the wider Cubigo platform.

step 1

Research

While the pandemic was unfolding, we kept close tabs on changing government regulations as they served as input for functional requirements.

Once visitor bans were getting lifted, restrictions such as maximum visits per week for each resident and visitor temperature below a threshold were at the core of the system.

By doing remote interviews and mapping out all visitor journeys, including for staff and suppliers – we discovered that the latter opted to use alternative sign-in methods such as employee ID’s or QR codes for swift repeat sign-ins.

We also received requests for doing automatic face mask detection during sign-ins. With all this input we could start working on the MVP.

Step 2

Exploration

We managed to create a first proof of concept with a functional temperature scanner and badge printer 1 month into the project. This PoC integrated with the Cubigo backoffice for changing settings and visitor capacity planning.

In the PoC video below the final designs were not yet in implemented.

One painful UX constraint we had to work with, was the wrist-based temperature scanner. This scanner was connected to a non-removable Android device that acted as a server.

In reality this meant users were presented multiple devices and I feared this would create a confusing check-in experience. The first ad-hoc user tests confirmed this assumption.

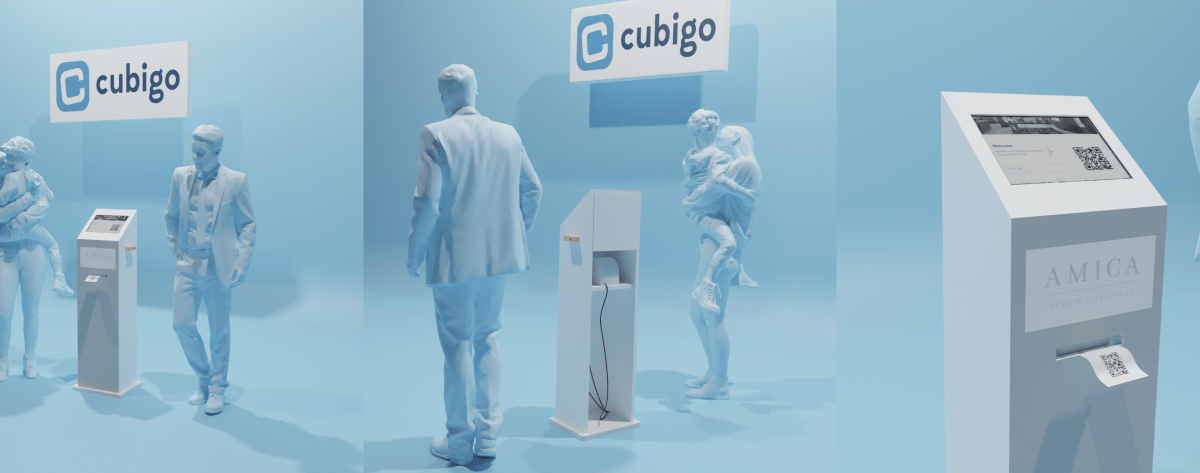

Since alternative hardware suppliers were not an option, we decided to start working on a concept for an enclosure that would hide the server so the visitor registration setup would be presented as 1 seamless experience.

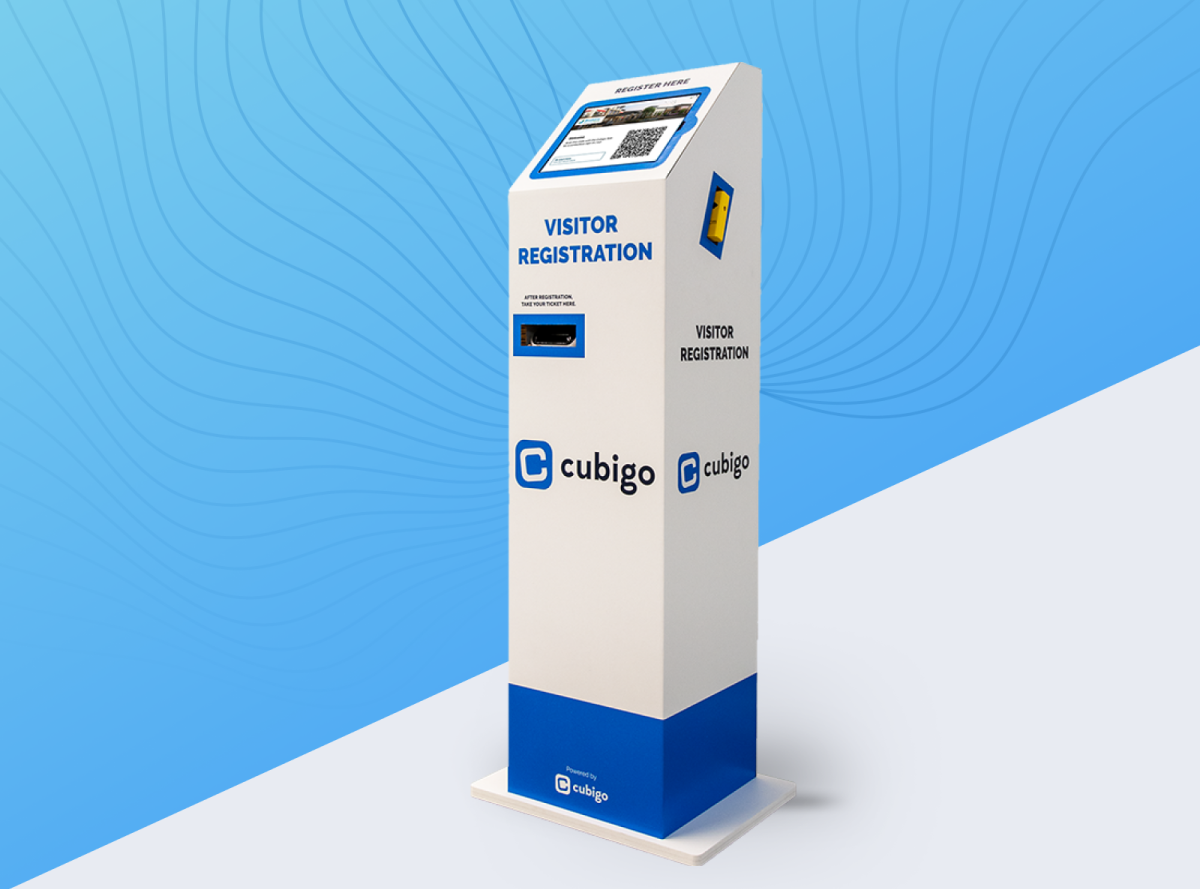

A local printshop helped with the production, and the final solution would allow branding so communities could apply their own look & feel.

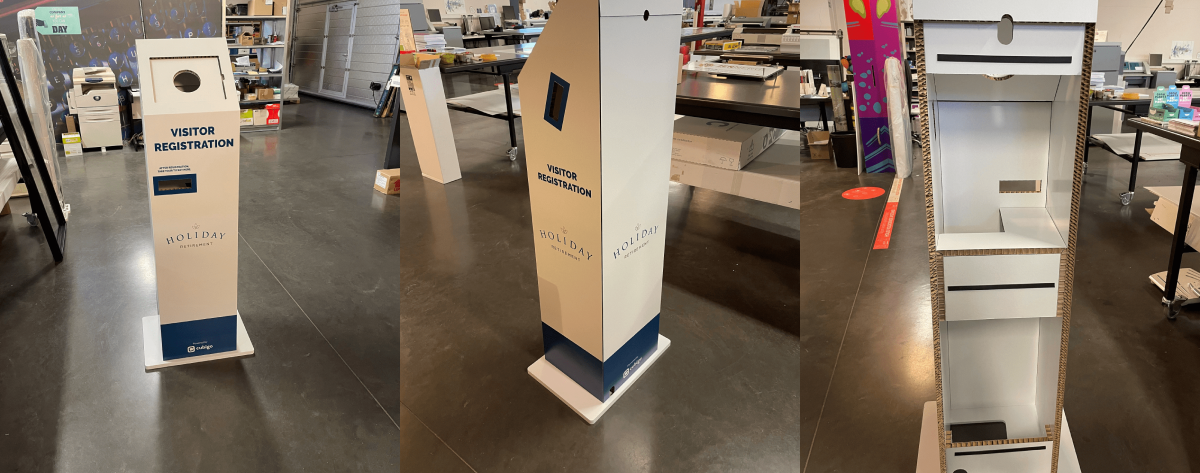

Below is an impression of the production prototype we shipped to Holiday Retirement (USA).

As a side track I experimented with a TensorFlow AI by training it with images of people wearing face masks to see if it could accurately automatically detect them.

The AI worked flawless for multiple types of masks and could also handle multiple visitors at the same time.

However, due to team capacity restrictions & technical challenges porting the code to iOS, the AI was not included in the final product.

Step 3

Delivery

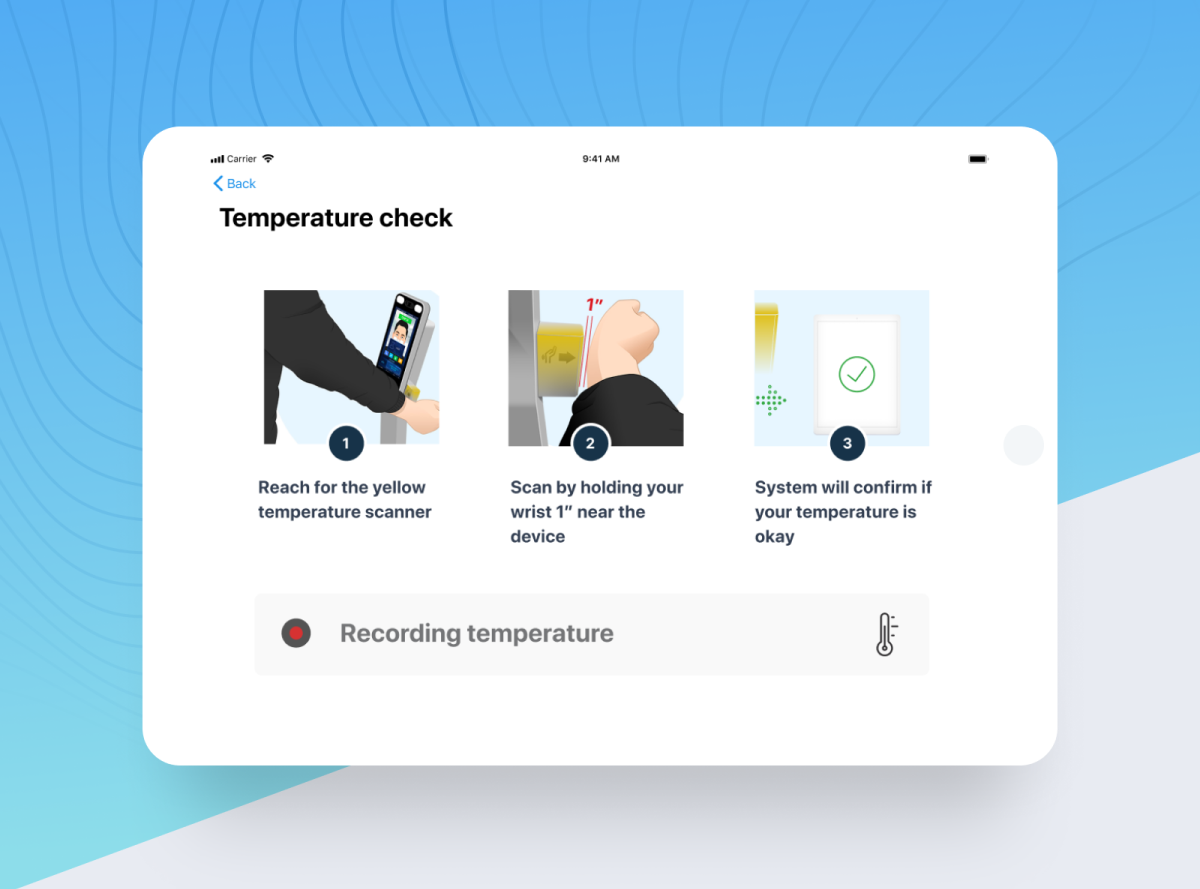

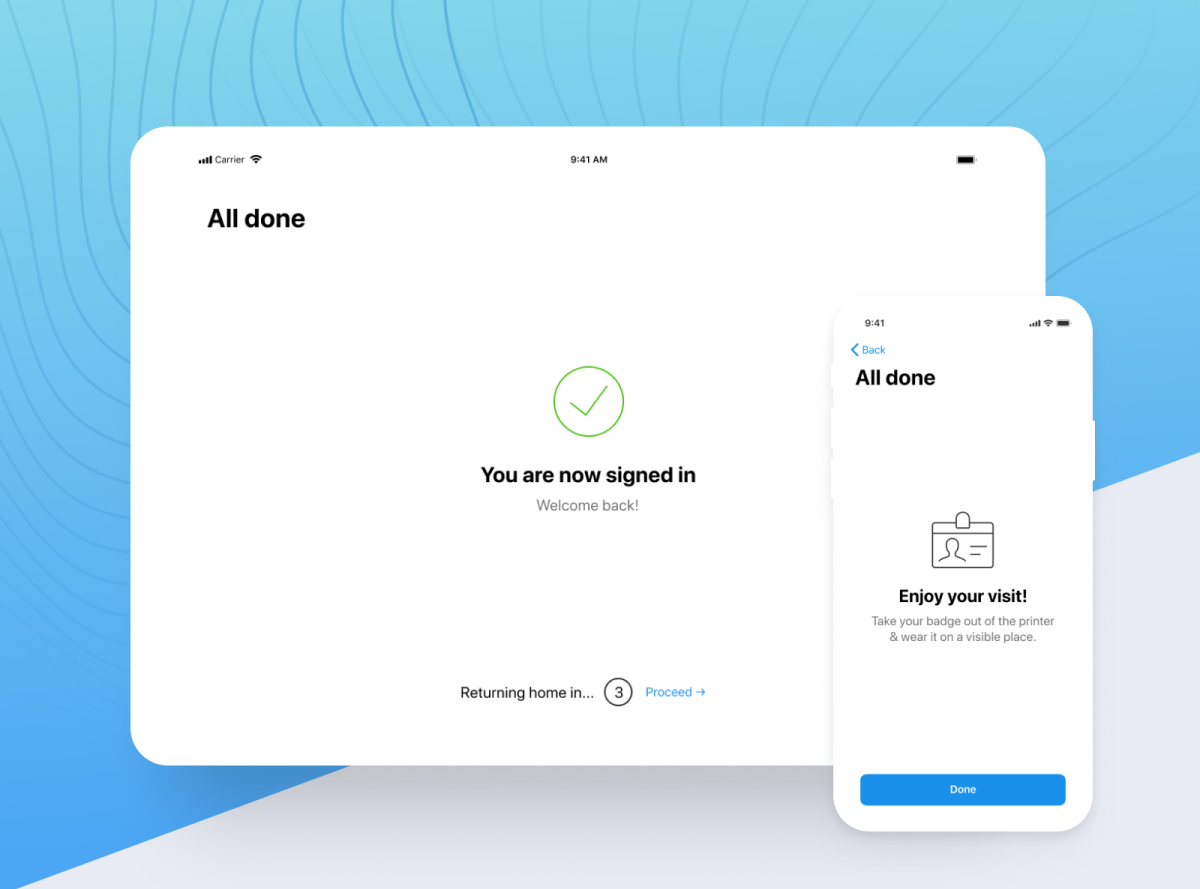

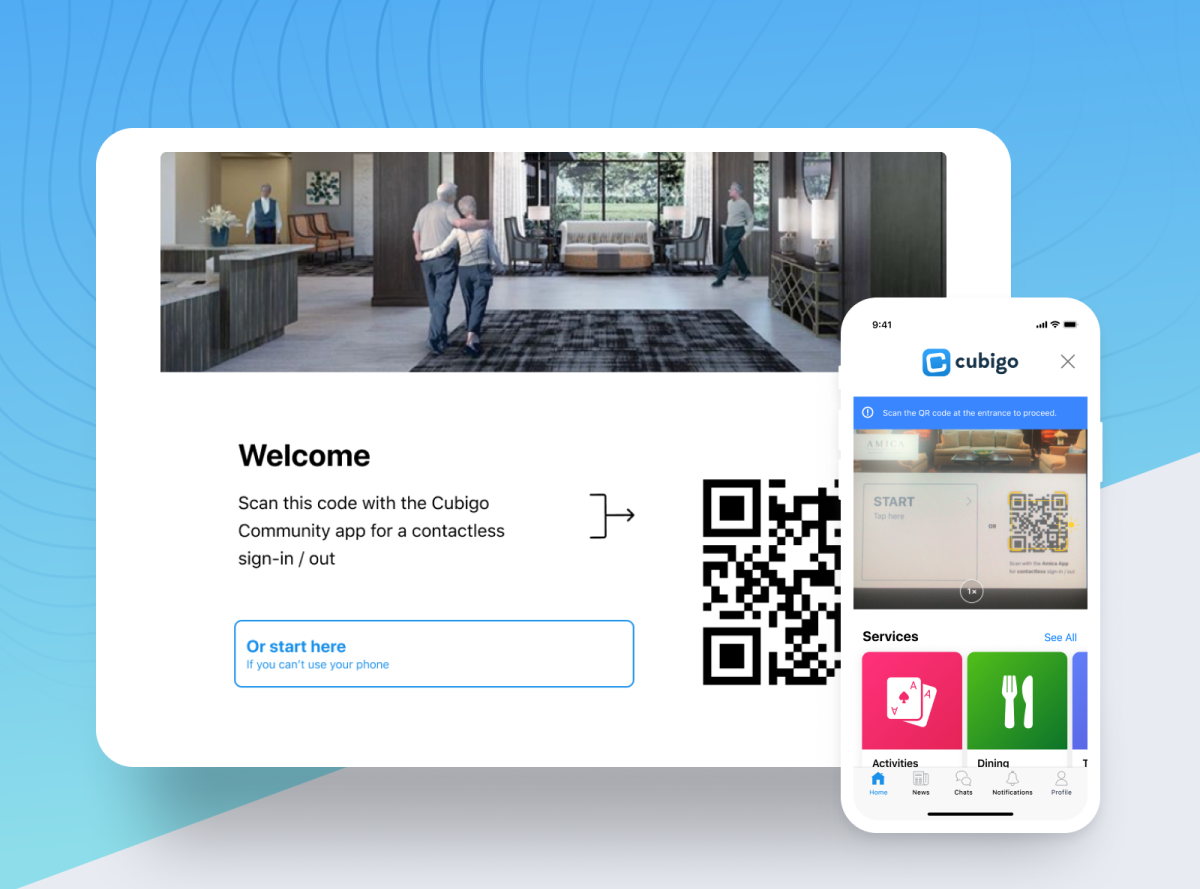

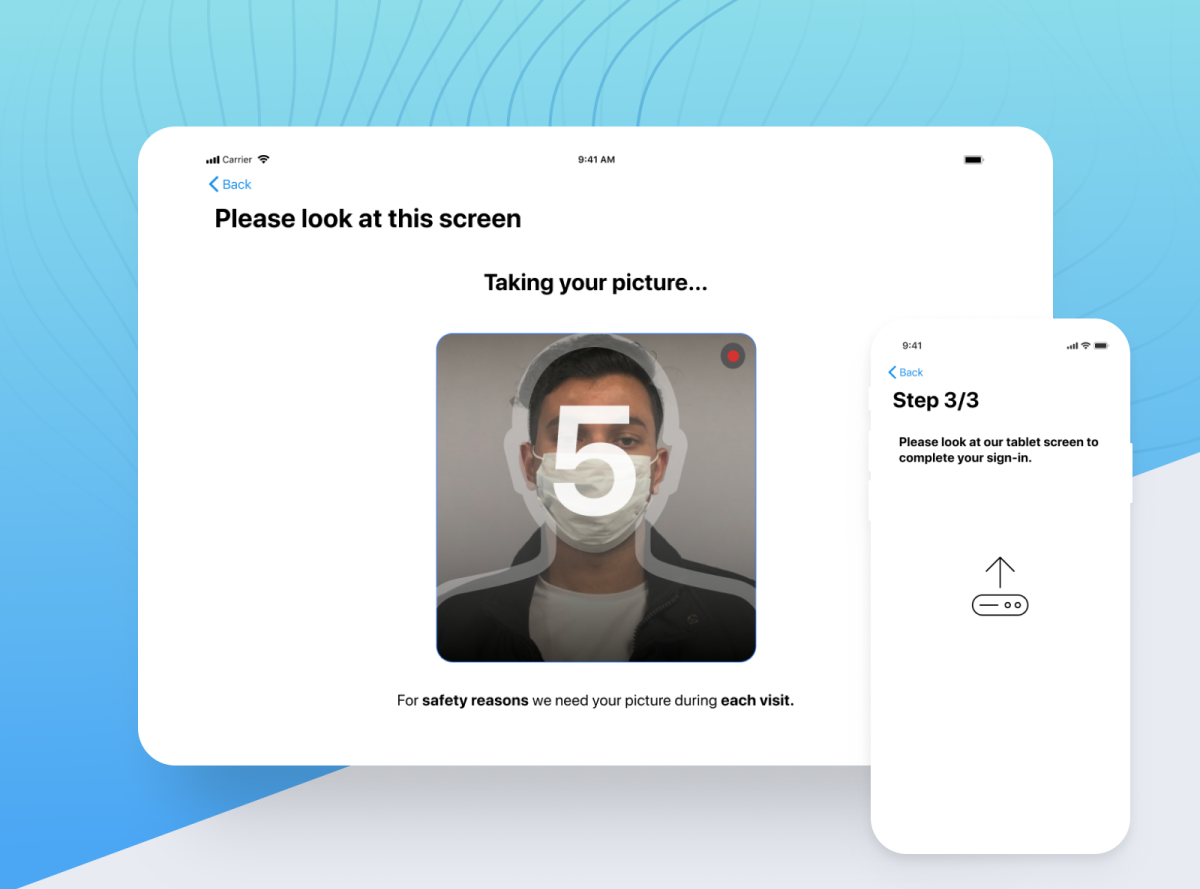

Figma allowed us to communicate efficiently as working fully remote had become the norm. Below is an impression of the first flow we developed for the kiosk

Next to a kiosk, the MVP consisted out of a web based backoffice for changing settings and web & iOS clients for planning visits and providing a touchless sign-in for visitors.

Within 3 months from starting the project, we launched a pilot at 3 client communities for testing. A month later we scaled to solution to all clients willing to adopt our visitor registration module.
